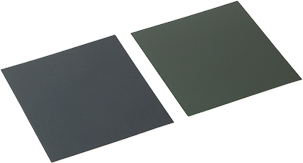

Maximum sheet size: 140x140mm, thickness: 0.08 ~ 0.2mm
Excellent wireless charging efficiency owing to high magnetic permeability at low frequency, compared to Ni-Zn ferrite
- High B, High μ & Low loss
- Higher Charging efficiency
Can be used as Tx and Rx shielding sheet
| Grade | FLX-P12X | FLX-P12Z |
|---|---|---|
| Materials | MnZn Ferrite | MnZn Ferrite |
| Max. Size(mm) | □140 x125 | □140 x125 |
| Thickness(mm) | 0.08~0.20 | 0.08~0.20 |

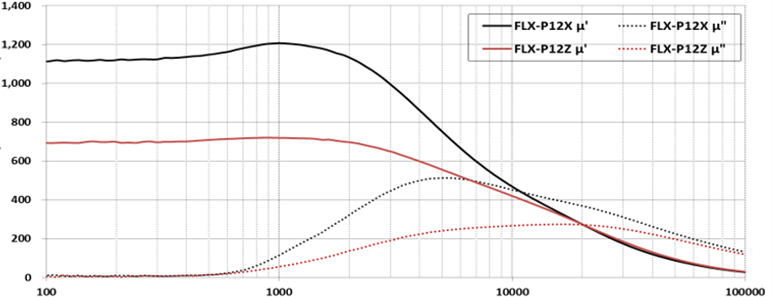

| μ' @100kHz | 1000 | 600 |
| μ” @100kHz | 8 | 6 |
| Bm(mT) | 480 | 480 |
| Pcv(mW/cc) @25℃, 200mT, 100kHz | 700 | 700 |
