Shielding sheets applied to improve the performance of smartphone NFC, WPC/air fuel antenna
Core competitiveness
· Technological prowess of manufacturing defect free high-quality products, using mass production capacity
· Ultra slim thick products (30㎛ ~ 300㎛) can be mass produced
· Production is possible with various original plate sizes (115mm ~ 165mm)
· Sheets can be processed according to the antenna shape, as requested by the customer
· Adopted by global premium smartphones
Application
NFC of smartphones, WPC/air fuel antenna
Grade | FLX-950 | FLX-247 | FLX-146 | FLX-221 |
---|---|---|---|---|
Material | Ni-Zn-Cu Ferrite | ← | ← | ← |
Max. Size (mm) | 135X135 | 135X135 | 135X135 | 135X135 |
Thickness (mm) | 0.05~0.30 | 0.05~0.30 | 0.05~0.30 | 0.05~0.30 |

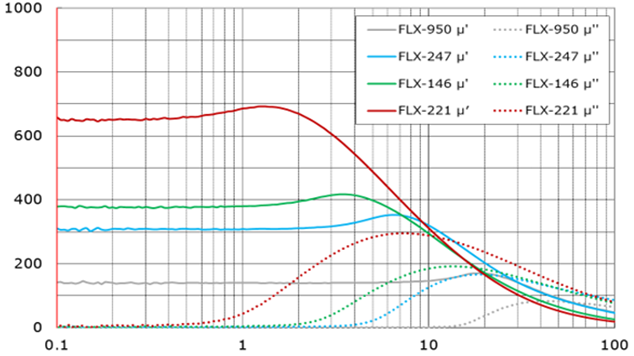

μ' @100kHz | 140 | 310 | 380 | 660 |
Curie Temp.(C˚) | 215 | 210 | 150 | 100 |
Environment | RoHS/Halogen free | RoHS/Halogen free | RoHS/Halogen free | RoHS/Halogen free |
